Business Area

Mobile

Performed the most waterproofing projects worldwide,
excellent waterproofing function with IPX8 rating

Waterproof Tape Heat Reactive Tape PE Foam Tape High Adhesion Double-sided Tape Single/Double/Non-carrier Tape Protective Film

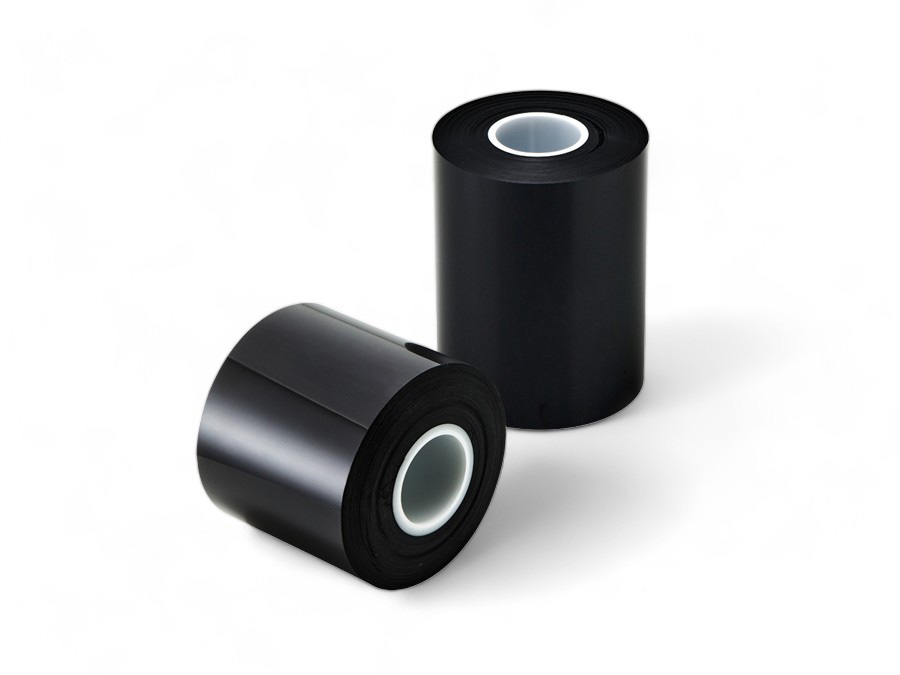

Heat Reactive Tape

Heat Reactive Tape with functional PSA that reacts to specific temperatures for easy dismantling of displays and fixtures

Excellent reworkability prevents product damage when dismantling smartphone fixtures and allows panel reuse without sticking or residue
  • WHR8000 Series
  • WPF8000 Series
  • TS5000HR Series
Move left and right to check.
Name Thickness(mm) Adhesion (gf/25mm) Base film Waterproof
Heat reactive Normal At heat condition
WHR8030V 0.30 3,100 2,600 600 PET IPX8
WHR8035 0.35 3,100 2,600 750
WPF8025V-1 0.25 3,400 3,800 350 PE Foam
WPF8030V-1 0.3 3,400 3,800 350
WPF8035V-1 0.35 3,000 4,800 550
WPF8030BHR 0.3 2,300 3,000 550
WPF8035BHR 0.35 2,300 3,300 550
TS5120HR 0.2 2,700 2,600 600 IPX7
