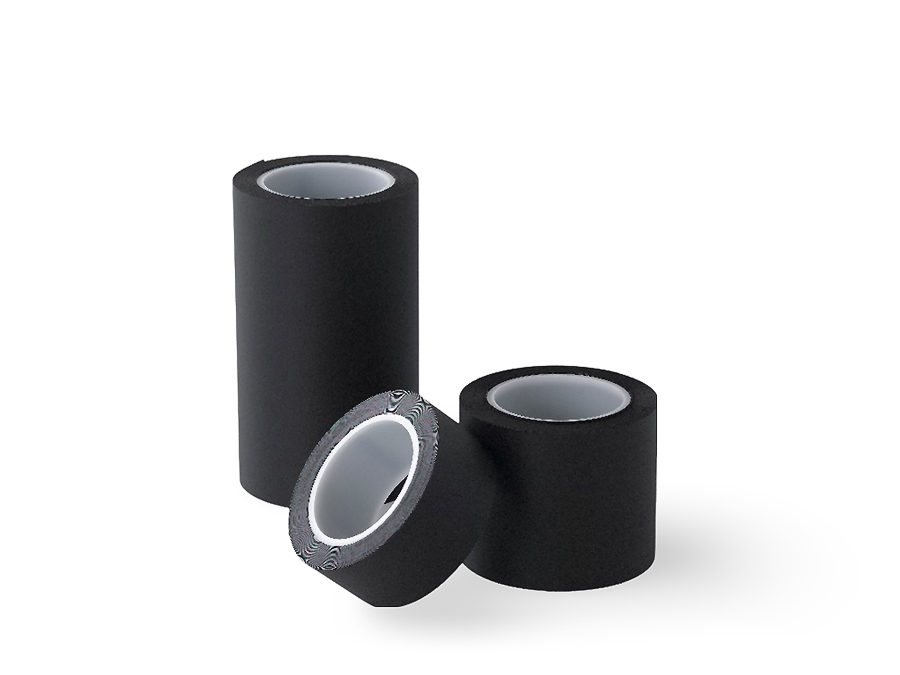

Embo Tape
Embo double-sided tape for OLED display attachment
Unique micro-embo pattern is applied to eliminate bubbles when attaching the display, and it has excellent high-temperature adhesion and retention.
Display
Excellent ability to overcome gaps and shock resistance.
High adhesion and excellent UV cutting function.
Move left and right to check.| Name | Thickness(mm) | Adhesion(gf/25mm) | Base film | Color | |
|---|---|---|---|---|---|
| Room temperature | High temperature(85℃) | ||||
| EBT-030B1-13 | 0.03 | 1,100 | 600 | PET | Black |
| EBT-034B-17 | 0.034 | 1,100 | 600 | ||
| EB3040D | 0.04 | 1,400 | 700 | ||
| EB3060D | 0.06 | 1,800 | 900 | ||
