EMBO Hybrid

Hybrid tape for the back of OLED display

Hybrid tape that maintains the basic performance of Embo + Shock Absorption Foam, but adds performance and slims down to a one-layer or multi-layer structure.
  • Foam + Embo Type : Cost reduction and high yield through simplified lamination process
  • Foam + Insulation Type : Insulation performance and gap compensation
  • Foam + PSA Type : Applicable to Digitizer
Move left and right to check.
Category Foam + Embo Type Foam + Insulation Type Foam + PSA Type
Thickness 130~180㎛ 115, 170, 200㎛ 150, 170㎛
Use OLED foldable OLED

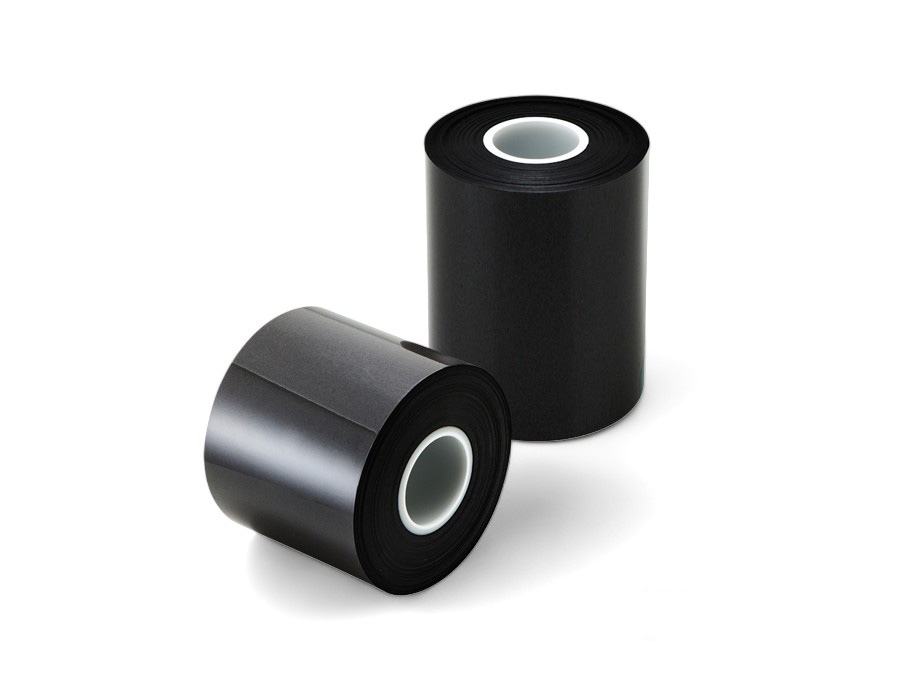

Foam + Embo Type

Move left and right to check.
Name Thickness(mm) Density(g/cm²) Adhesion(gf/25㎜) Compressive load(Mpa) Base film Color Permittivity(400Khz)
25%
EB3142S-P1 0.142 0.65 1,800 0.41 Acrylic foam / PET Black -
EB3162S-P1 0.162 0.65 1,800 0.32 3.9
EB2150S-P1 0.15 0.58 1,000 0.3 -
EB2156S-P1 0.156 0.58 1,100 0.26 -

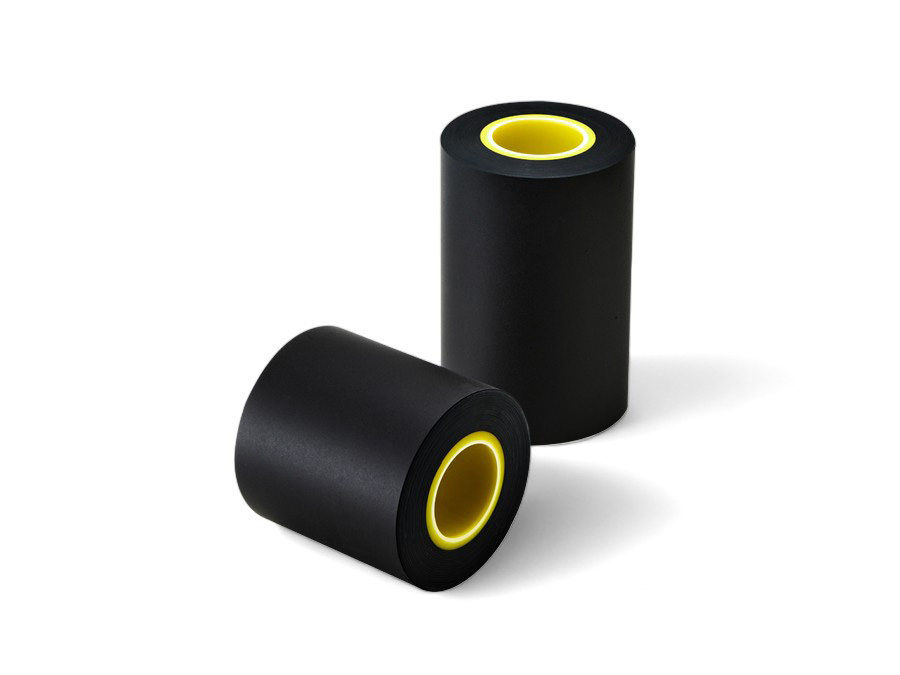

Foam + Insulation Type

Move left and right to check.
Name Thickness(mm) Density(g/cm²) Adhesion(gf/25㎜) Compressive load(Mpa) Base film Color Surface resistance(Ω)
25% 50%
ICA-25P-093BG 0.093 0.8 300 0.17 - PET Black/Gray 10^10 ↑
ICA-25P-115BG 0.115 0.8 600 0.28 -
ICA-25P-170BG 0.17 0.55 800 0.2 -
ICA-25P-200BG 0.2 0.55 1,000 0.2 0.75

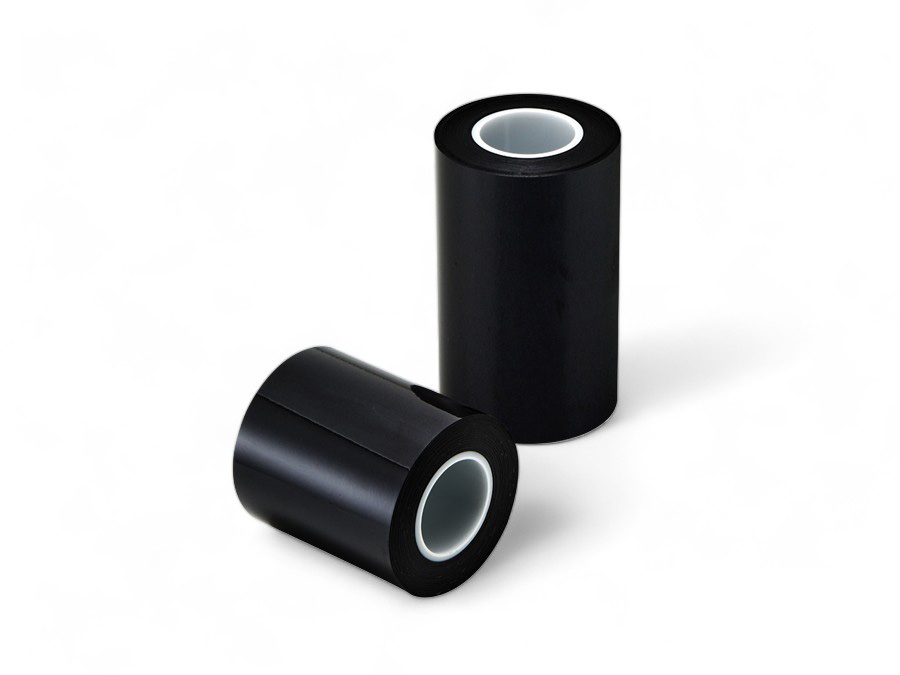

Foam + PSA Type

Move left and right to check.
Name Thickness(mm) Density(g/cm²) Adhesion(gf/25㎜) Compressive load(Mpa) Base film Color
25% 50%
NCF1147S 0.147 0.65 1,600 0.16 0.41 Acrylic foam Black
SCSA1145S 0.145 0.7 1,600 0.2 0.45
SCA-20P-140B 0.14 0.72 1,600 0.18 0.55
SCA-20P-150B 0.15 0.7 1,600 0.15 0.45
SCA-20P-170B 0.17 0.7 1,600 0.15 0.45
